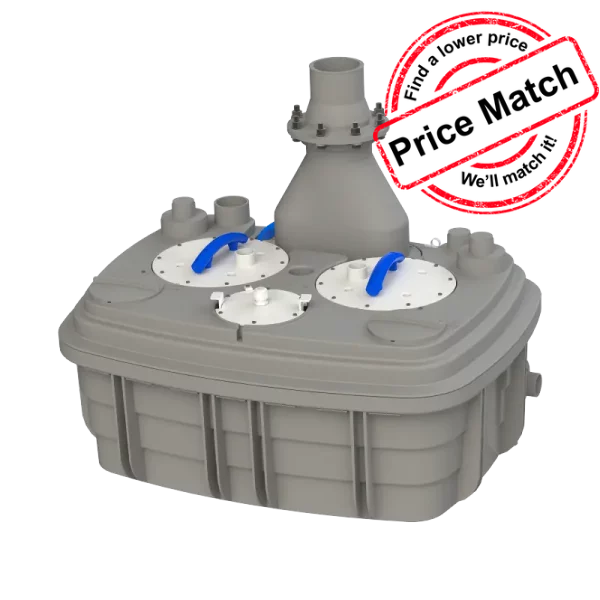

SANICUBIC 2 VX (XL) (part numbers 6105 / 6305)
£2,134.53–£2,592.67 ex. VAT
£2,561.44–£3,111.20 incl. VAT
FREE Next day delivery
(order before 14:00)*

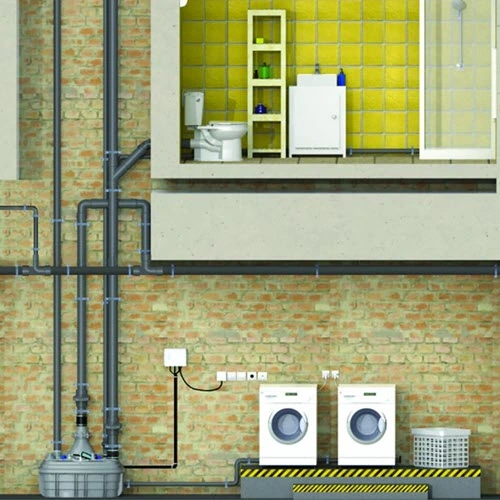

The Sanicubic 2 XL is one of our largest lifting stations for commercial use handling up to 40m3/hour of black water via two 2kW pumps. It is easy to install as it stands on the floor and does not need to be positioned below ground.
INSTALLER: ideal for public buildings, restaurants, schools, shopping centres, hotels etc
- Large bore vortex pump which can pump away waste without the need to macerate
- Easily removable motors for servicing and maintenance
- Large 20 litre tank volume
- Easy to install – no need to excavate
- Two alarms for ultimate safety – both hard-wired
- Two integrated non-return valves and four inlets: 40/50/00/0mm and one inlet 40/50mm
- Centre height of inlets 80mm
- Working temperature of 35°C. Will handle up to 70°C for short periods.
- Volt free contact for connection to a Building Management System
The product shown is with a standard control box. There is a model with a smart control box. Please call us for both of these products BEFORE placing your order so that we can assist you with spec and confirm product delivery.
| Weight | 88 kg |
| Inlet diameter | 1 inlet DN 40/50 (Ø ext. 40/50 mm) 4 inlets DN 40/50/100/110 (Ø ext. 40/50/100/110 mm) |
| Motor power | SANICUBIC® 2 XL (single-phase): 2 x 2000 W; SANICUBIC 2 XL (three-phase): 2 x 3500 W |
| Supply voltage | SANICUBIC® 2 XL (single-phase): 220-240 V / 50 Hz; SANICUBIC 2 XL (three-phase): 230-400V / 50Hz |
| Electrical class | 1 |
| IP rating | IP68 |
| Maximum flow rate | SANICUBIC® 2 XL monophasée : 40 m3/h; SANICUBIC® 2 XL triphasée : 55 m3/h |
| Maximum current consumption | SANICUBIC® 2 XL (single-phase): 16 A; SANICUBIC 2 XL (three-phase): 12 A |
| Maximum incoming water temperature | 70 °C intermittently (max 5 min) |
| Discharge pipe diameter | DN100 (Ø ext. 110 mm) |
| Control box IP rating | IPX4 |
| Weight (including accessories) | SANICUBIC® 2 XL (single-phase): 59 kg; SANICUBIC 2 XL (three-phase): 60 kg |
| Maximum recommended depth | SANICUBIC® 2 XL (single-phase): 6 m (DN100) and 10 m (DN80); SANICUBIC 2 XL (three-phase): 11 m (DN100) 14 m (DN80) |
| Tank volume | 120 L |
| Vent diameter | 75 mm |
| Maximum depth (Q eq 0 L/min) | SANICUBIC® 2 XL (single-phase): 13 m; SANICUBIC 2 XL (three-phase): 17 m |
| ON/OFF level | 166/100 mm |
| Alarm level | 240 mm |
| Clearance | 50 mm |
| Possible connections | Connection options: blackwater from several toilets, greywater from bathroom, kitchen, laundry |
Additional information
| Weight | 88 kg |
|---|---|
| Pump Type | Single-phase, Three-phase |
