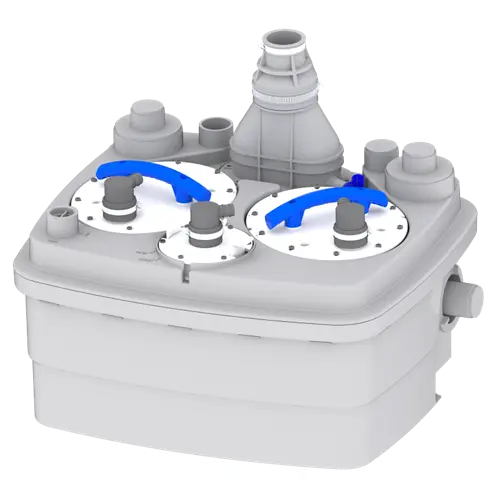

SANICUBIC 2 CLASSIC (part number 6103/30013)

£1,200.00 ex. VAT
£1,440.00 incl. VAT

FREE Next day delivery
(order before 14:00)*

Commercial icons

The Sanicubic 2 Classic contains two separate, load balanced pumps with high-performance macerating systems and will operate alternately. In the event of inflow overload, both motors run at the same time, or in the unlikely event that one motor fails, the other one will take over.

INSTALLER: Ideal for busy business environments and larger domestic situations

  • Tough, reliable macerator pump
  • New design with easily removable motor for servicing and maintenance
  • Water level indicator unit can be easily removed for maintenance
  • Load balanced twin macerator pumps for a failsafe system
  • Alternate activation ensures even wear of motors
  • Two alarms for ultimate safety – both hard-wired
  • Working temperature of 35°C. Will handle up to 70°C for short periods
  • Can be connected to a Building Management System
Product Sheet Install Instructions
Weight 35 kg
Number of available inlets 5
Inlet diameter 1 inlet DN 40/50 (Ø ext. 40/50 mm)
4 inlets DN 40/50/100/110 (Ø ext. 40/50/100/110 mm)
Motor power 2 x 1500 W
Supply voltage 220-240V/50Hz
Electrical class 1
IP rating IP68
Maximum incoming water temperature 70 °C intermittently (max 5 min)
Discharge pipe diameter DN40 (Ø ext. 50 mm)
Control box IP rating IPX4
Weight (including accessories) 35 kg
Maximum recommended depth 11 m
Tank volume 45 L
Vent diameter 50 mm
Maximum depth (Q eq 0 L/min) 13 m
ON/OFF level 140/60 mm
Alarm level 210 mm
Possible connections Connection options: blackwater from several toilets, greywater from bathroom, kitchen, laundry

Additional information

Weight 35 kg
