A dual motor lifting station that can be used for pumping residential or industrial wastewater when the sewer is at too high level for natural gravity drainage

3 Commercial Icons

The SANIFOS 1300 lifting station lifts all wastewater from your building, whether that be professional premises such as an office block or warehouse or a domestic dwelling. The Sanifos 1300 can cope with WC, basin, shower, sink, bath, washing machine, dishwasher etc.

The SANIFOS 1300 is available in single-phase grinder, single-phase Vortex and three-phase Vortex versions. Its two pumps operate alternately for a durable and safe operation.

The lifting station comes with an interactive and intelligent monitoring system: the SMART box. The 1300 litres tank allows a frost-free installation. The tank comes with pre-assembled hydraulics, 2 isolation valves, 2 non-return valves and three floats. It also comes with an alarm box for added peace of mind.

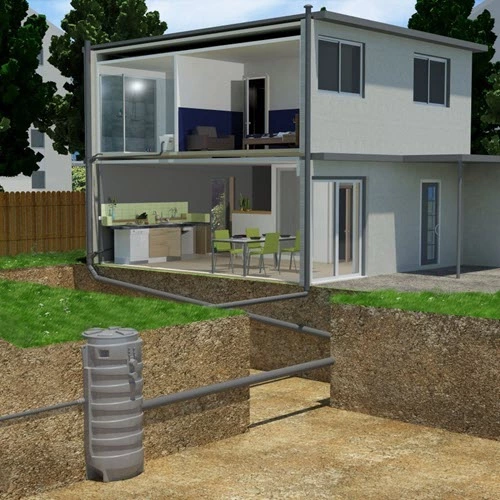

The SANIFOS 1300 has been designed for use externally, it can be buried near the property to pump wastewater up to sewage level. It has been designed, tested and manufactured in our factory in France. The Sanifos comes with a 2-year warranty.

  • Two pumps for intense use
  • Comes with a SMART control box
  • Single phase or three phase version
  • Frost proof installation

Please call 0118 9821 555 for price and delivery

Weight 140 kg
Inlet diameter Ø 160 mm
Motor power SANIFOS 1300® single phase grinder :2*1 500 W;
SANIFOS 1300® Single phase vortex : 2*1 500 W;
SANIFOS 1300® Three phases vortex triphasée : 2*2 800 W
Supply voltage SANIFOS 1300® Single phase grinder : 220-240 V/50 Hz; SANIFOS 1300® Single phase vortex : 220-240 V/50 Hz; SANIFOS 1300® Three phases vortex : 230-380 V/50 Hz
Maximum vertical discharge 10 m
Maximum flow rate 27 m³/h
Maximum current consumption SANIFOS 1300® Single phase grinder : 2* 6 A;
SANIFOS 1300® Single phase vortex : 2* 6 A;
SANIFOS 1300® Three phases vortex : 2* 7 A
Maximum incoming water temperature 70 °C intermittently (max 5 min)
Discharge pipe diameter DN50 (Ø ext. 63 mm)
Tank volume 1300 L
Vent diameter 75 mm
ON/OFF level 650/150 mm
Materials PEHD
Incoming water flow (FEA) 840 mm (avec réhausse : 1 240 mm)
Activation method Float
Thermal overload protection Yes
