Sanicubic 1SC
The Sanicubic 1 SC is a 1 motor lifting station ideal for commercial use.
- Single channel cutting blade
- Available in three phase
- 4 versions: from 125 to 175 m3 / h evacuated

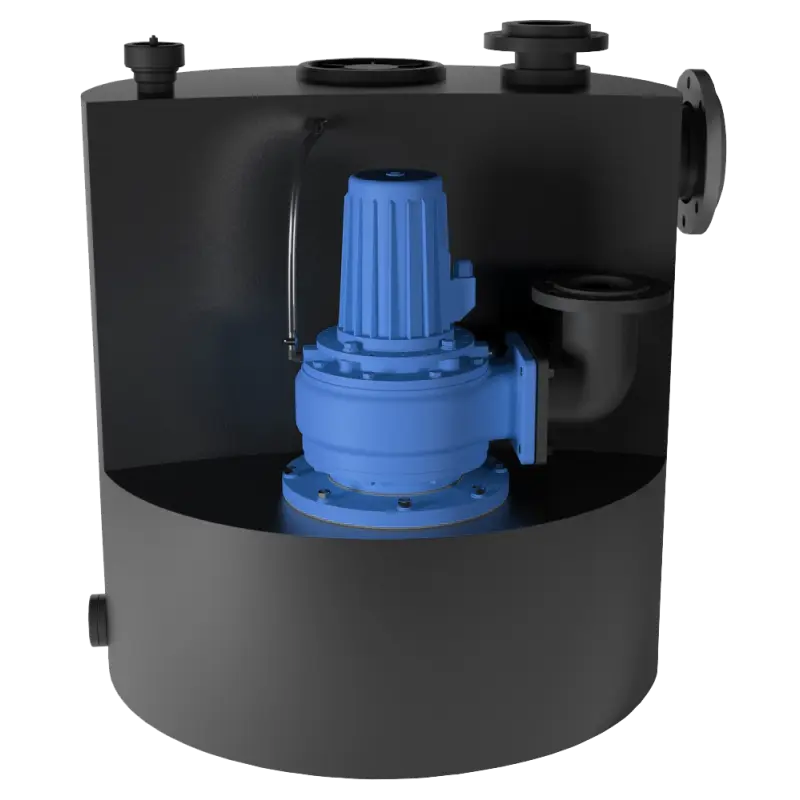

The SANICUBIC 1 SC is a lifting station with 1 IP68 certified motor, equipped with a high performance single channel cutting blade.
The SANICUBIC 1 SC is available in 4 versions for 4 high volume lifting performances. It has a DN 150 entrance to raise large volumes of wastewater.
The station comes with a remote control box as well as audible and visual alarms.
Please call 0118 9821 555 for price and delivery
| Weight | 210, 220, 225 or 240 kg |
| Inlet diameter | 150 mm |
| Recommended discharge pipe diameter | DN100 (Ø ext. 110 mm) |
| Motor power | 4 000 W, 5 500 W, 6 300 W or 8 700 W |
| Electrical class | 1 |
| IP rating | IP57 |
| Maximum flow rate | 120, 140, 160 or 165 m³/h |
| Maximum current consumption | 6.9 A, 11,2 A, 12,1 A or 16,9 A |
| Maximum incoming water temperature | 55°C |
| Control box IP rating | IP65 |
| Tank volume | 480 L |
| Vent diameter |
100 mm |
| Maximum depth (Q eq 0 m3/h) | 22, 25, 35 or 39 m |
